Insulation fiberglass

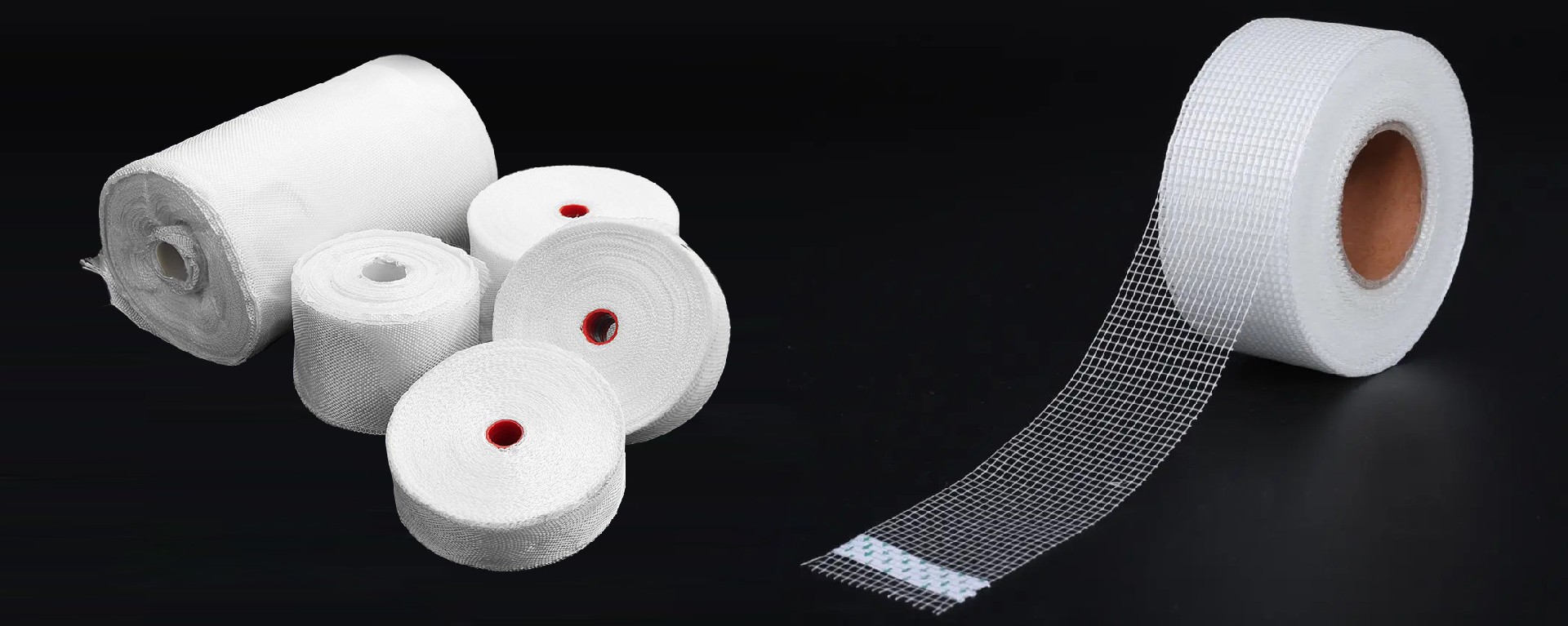

1、Non-alkali fiberglass tape（E－glass fiber tape）
    Our non-alkali fiberglass tape is mainly shuttleless-woven, which is divided into five categories: plain weave, twill weave, satin weave, herringbone weave, broken twill weave based on their appearance and processing properties. It is good insulating materials. Applications include insulating material for winding or wrapping motors, transformers, communication cables, and other electrical equipment. Also used as a base material for FRP products.
Thickness: 0.08mm——0.35mm Width: 10mm——150mm Length: 50m——100m
plain weave
twill weave
satin weave
herringbone weave
broken twill weave

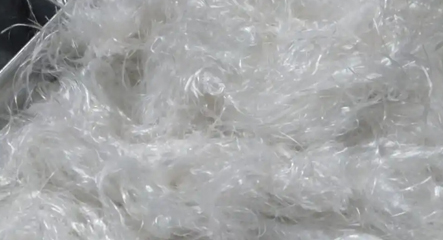

2、Texturized yarn &fabric
    It is texturized by a special fitting with high pressure air. It is as high strength as continuous fiber and as bulky as staple fiber. It is a new novelty material with the performance of high temperature resistance、low coefficient of thermal conductivity、erosion resistance、high filtering efficiency and it is unharmful to person. And now it is widely used in many advanced foreign countries. We have three kinds: completely texturized, grain shape texturized, twisted texturized.
Linear density: 200Tex——5000Tex Filament diameter: 9——13μm

completely texturized
grain shape texturized
twisted texturized
Texturised Tape
    It is woven from E-glass or C-glass fiber texturised yarn, which with hard thrum. They are available in insulating of pipeline, wrapping cable and liner of switch box.
Thickness:1mm——6mm Width: 20mm ——150mm

Texturized tape

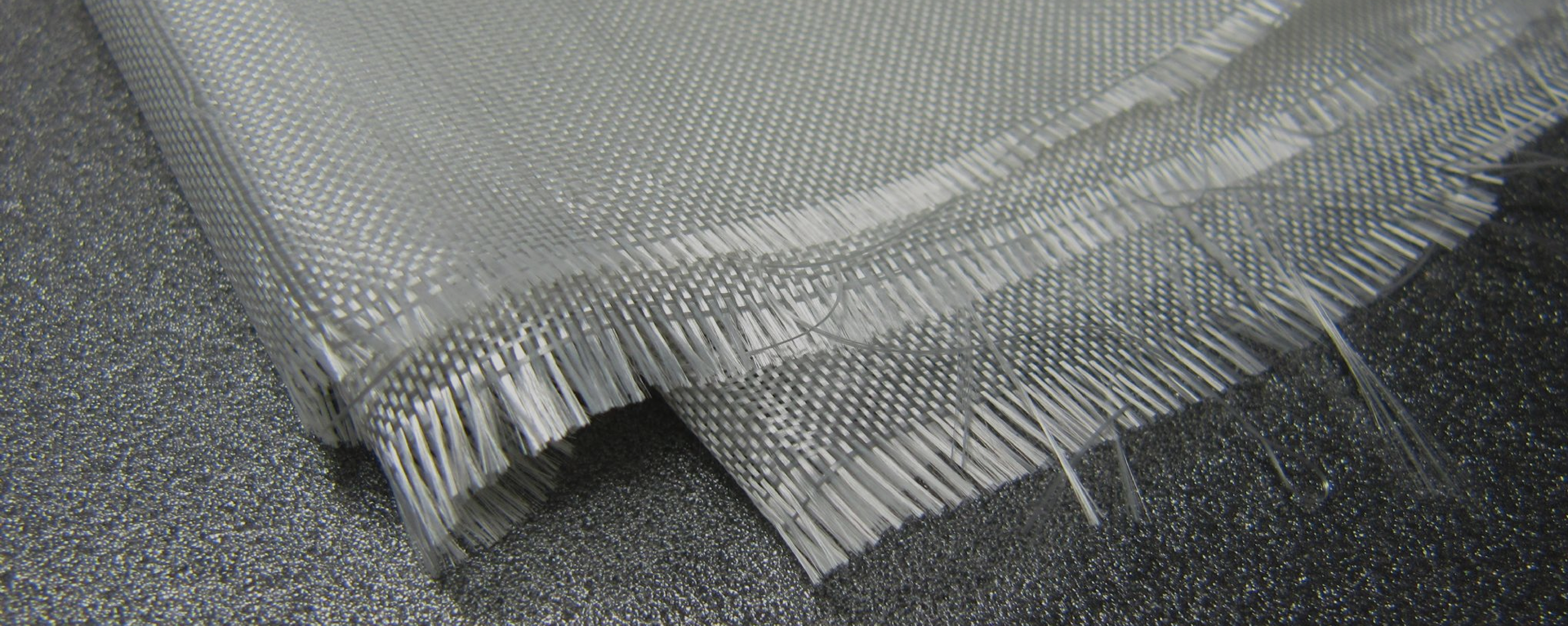

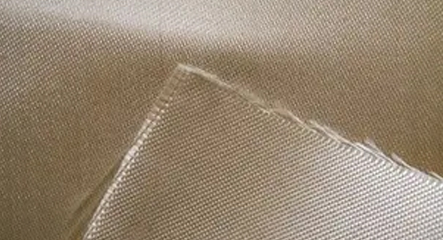

3、E-glass fiber fabric
    E-glass fiber fabric is characterized by good wet-out, high strength, corrosion-resistant, insulation, etc. It is widely used in aircraft and space flight industry, ship industry, chemical industry, medical industry, military industry, sports goods, etc. It is available in manufacturing FRP fishing pole, golf pole, baseball bole, surfboard, sailboard, skis, ice stick, etc.
Thickness:0.12mm——0.30mm Width:200mm——2000mm
Length:100m——200m
E-glass fiber fabric
4、Fiberglass rope
    It is woven from fiberglass yarn, with good insulation performance and heat resistance. It is widely used as insulation materials in motors、instruments and electrical equipment. Also it can be as fillings and so on.
Fiberglass rope
